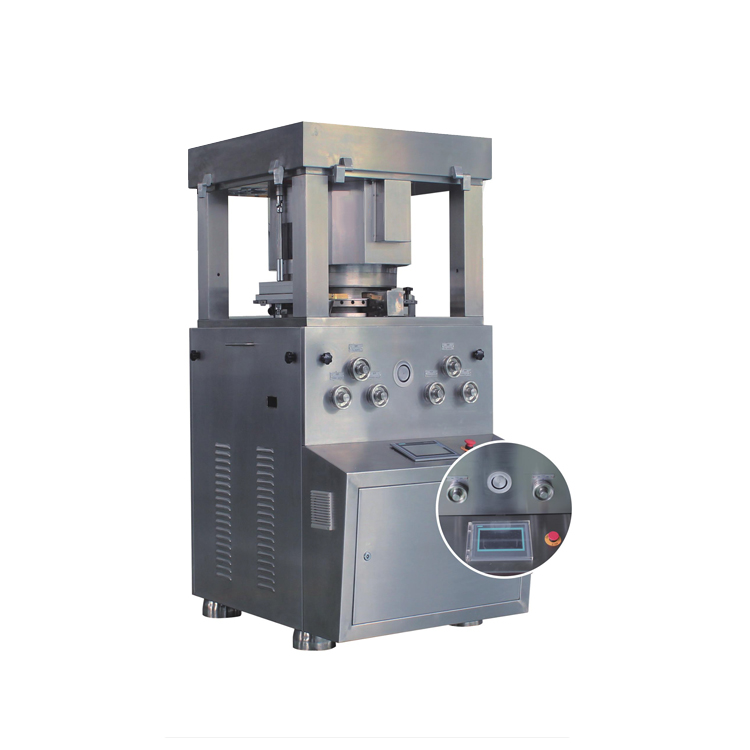

Home » Products » Tablet Press Machine » GZP420i Double Discharging Rotary Tablet Press
Equipment performance
Has a preloading function
Adopts PLC programmable control
Man-machine interface, easy to operate Shows the main pressure, fillling volume, slice thickness, speed, output
With overpressure alarm function
Using quantitative lubricating function
Feeding methods, forced feeder
Tablet pressing chamber meet GMP requirements
Technical parameters
|
參數(shù) |
Data |
GZP29i |
GZP37i |
GZP39i |
GZP45i |
|
沖桿直徑 |
Punch Diameter (mm) |
26 |
22 |
22 |
10 |
|
最大壓片直徑 |
Max Tablet Diameter (mm) |
22 |
12 |
12 |
10 |
|
最大轉速 |
Max Rotation Speed (r/min) |
40 |
40 |
40 |
40 |
|
最大填充深度 |
Max Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
最大產(chǎn)量 |
Max Production Capacity (pc/h) |
139200 |
177600 |
187200 |
216000 |
|
最大主壓力 |
Max Main Pressure (kn) |
80 |
80 |
80 |
80 |
|
最大預壓力 |
Max Pre- pressure (kn) |
15 |
15 |
15 |
15 |
|
主電機功率 |
Main Motor Power (kw) |
4KW |
4KW |
4Kw |
4Kw |
|
設備占地面積 |
Machine Area (mm) |
850x 1100 |
850x1100 |
850x 1100 |
850x1100 |
|
設備高度 |
Machine Height (mm) |
1750 |
1750 |
1750 |
1750 |
|
設備重量 |
Machine Weight (kg) |
2050 |
2050 |
2050 |
2050 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Develop ZP-17D model according to GMP standard .offer such laboratories of R & D institution as the pharmacy ,food ,chemical industry ,etc .
It is the best ideal equipment to trial-produce or produce in small batch to suppress various kinds of particles form grain to ring tablet and abnormity .Stainless steel packaging of the appearance .operating room Lucite all opened new-type structure closed completely to clear bright .without any dead angle to remove incidentals .The machine has the advantage of little volume .light weight ,neat appearance ,safe warring device , complete dust collect performance .low noise .Rotary adopt step less frequency conversion to adjust the speed .
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Learn More
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materi-
als into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic
and metallurgical industries.
