Home » Products » Tablet Press Machine » GZPK-720i Automatic Double Discharge High-speed Tablet Press

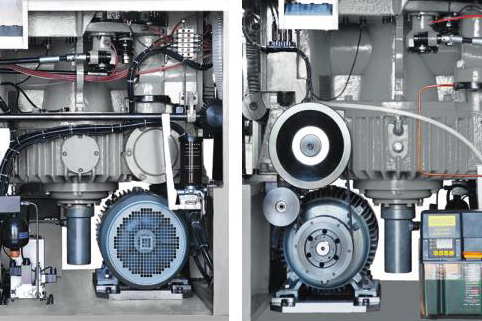

Imported hydraulic pump unit sustains main pressureand prepressure, process of pressing goes smoothly
with low noise;
Equipped with protective unit of overloading, auto stopped while pressure overloaded.
An easy disassembled structure has high maintainability.
Force-feeding device controls the flow of powder and ensures the accuracy of feeding.
Feeder is easy to be disassembled, and the platform is easy to be regulated.
No dead area in press chamber and easy to be abserved and cleaned.
Technical parameters
|
參數 |
Data |
GZPK-51 |
GZPK-65 |
GZPK-83 |
|
沖頭數 |
No. of stations |
51 |
65 |
83 |
|
沖模類型 |
Tooling type |
D |
B |
BB |
|
產量范圍（片/小時） |
Output range (Tablet s/h) |
61200-612000 |
62400-624000 |
79600-796000 |
|
轉速范圍（轉/分鐘） |
Rotation speed rang (rpm) |
8-80rpm |
||
|
主壓力 |
Main prssure |
100KN |
||
|
預壓力 |
Pre-pressure |
16KN |
||
|
最大片徑 |
Max. tablet diameter |
25mm |
16mm |
13mm |
|
異形片最大長度 |
Max. length of irregular tablet |
25mm |
19mm |
16mm |
|
沖模直徑 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
|
最大填充深度 |
Max. filling depth |
20mm |
20mm |
16mm |
|
沖桿直徑 |
Diameter of punch |
25.35mm |
19mm |
19mm |
|
沖頭長度 |
Length of punch |
133.6mm |
||
|
沖頭所在圓周直徑 |
Pitch circle diameter |
720mm |
||
|
主電機功率 |
Main motor power |
11kW |
||
|
重量 |
Weight |
3380kg |
||
|
外形尺寸 |
Dimension |
1294 x 1500 x 2000mm |
||
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

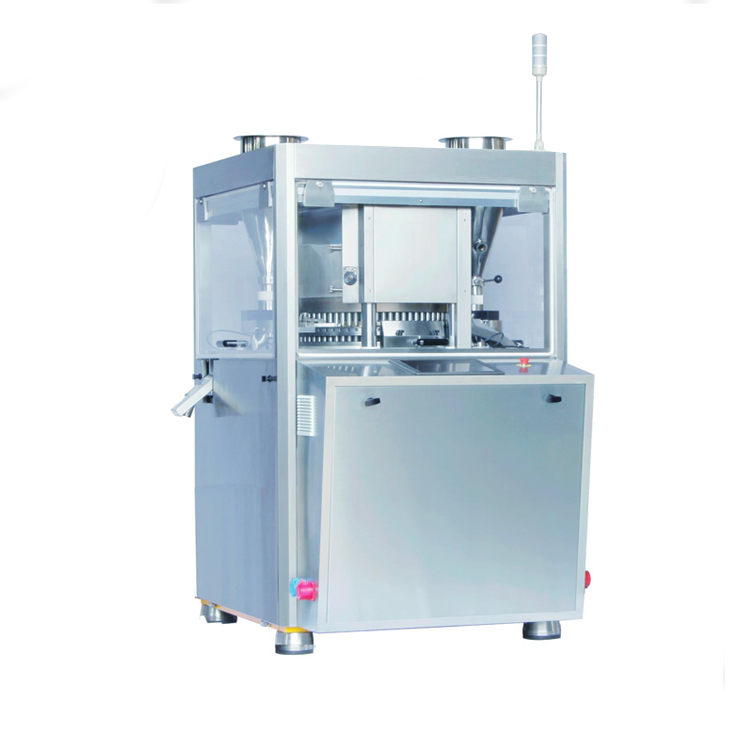

Main application This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Learn More
This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
Learn More
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Learn More
The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
