 Home » Products » Liquid Filler » NF-60Z/60A/80A Automatic Filling and Sealing Machine

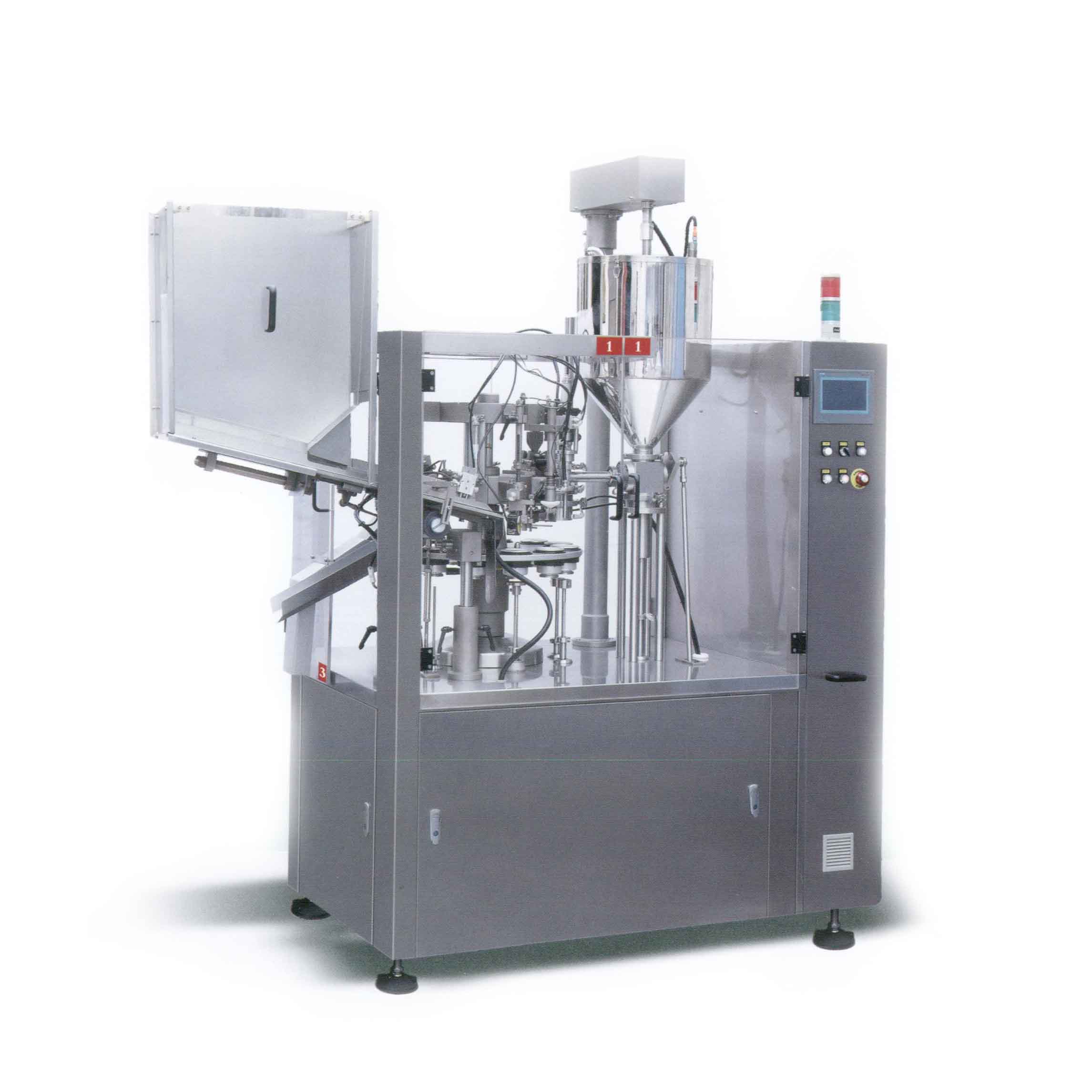

NF-60Z/60A/80A Automatic Filling and Sealing Machine

Feature

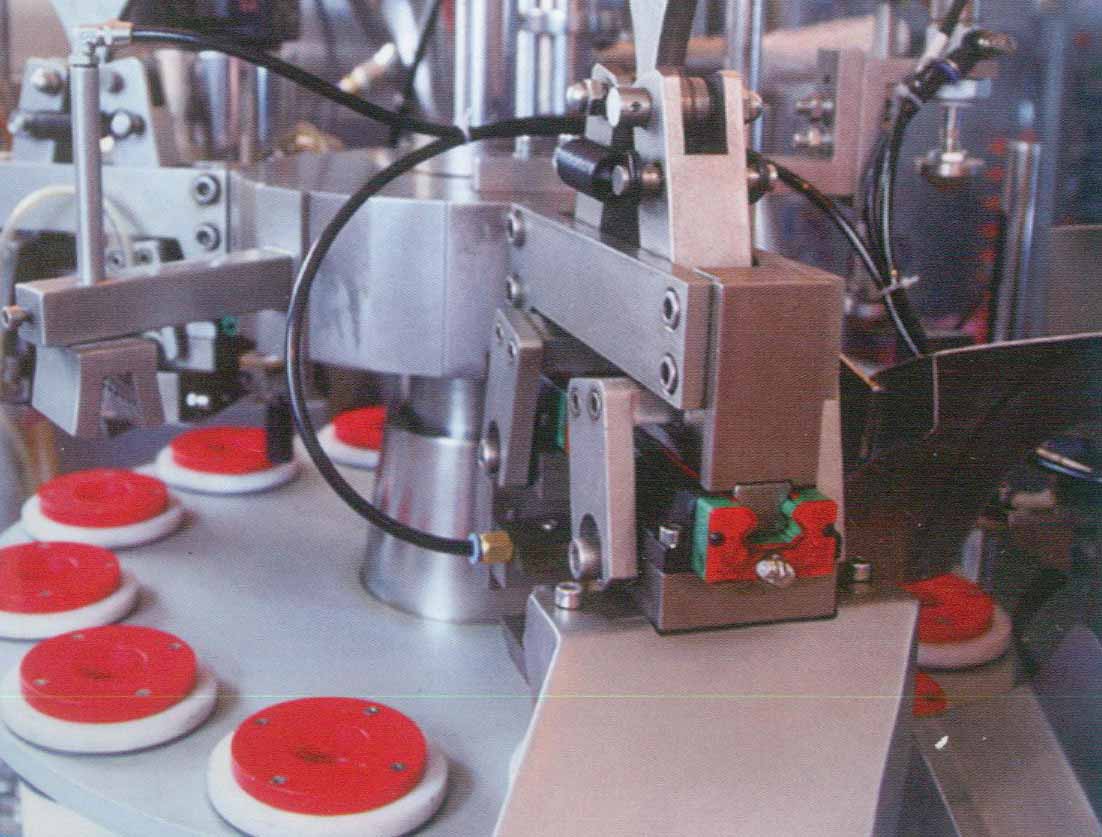

u With 12 working stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of plumbum tube, ALU tube, plastic tube and laminated tubes. It is a multi-purpose  machine.

u Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
u According to the different length of the tube, height of tube chamber, tube hopper can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
u The mechanical linkage photo sensor precision tolerance is less than ± 0.5mm. The chromatic aberration scope between tube and eye mark is reduced.
u Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
u Three-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautifu sealing effect


Main Technical Parameter

Model

NF-60Z

NF-60A

NF-80A

Filling Speed

60 pcs/m

60pcs/m

80pcs/m

Filling Range

5-180ml/pcs

5-240ml/pcs

5-300ml/pcs

Filling Accuracy

≤±1%

≤±1%

≤±1%

Diameter of Soft Tube

Φ10-φ35mm

Φ10-φ50mm

Φ10-φ50mm

Length of Soft Tube

50-180mm

50-210mm

50-210mm

Tube Material

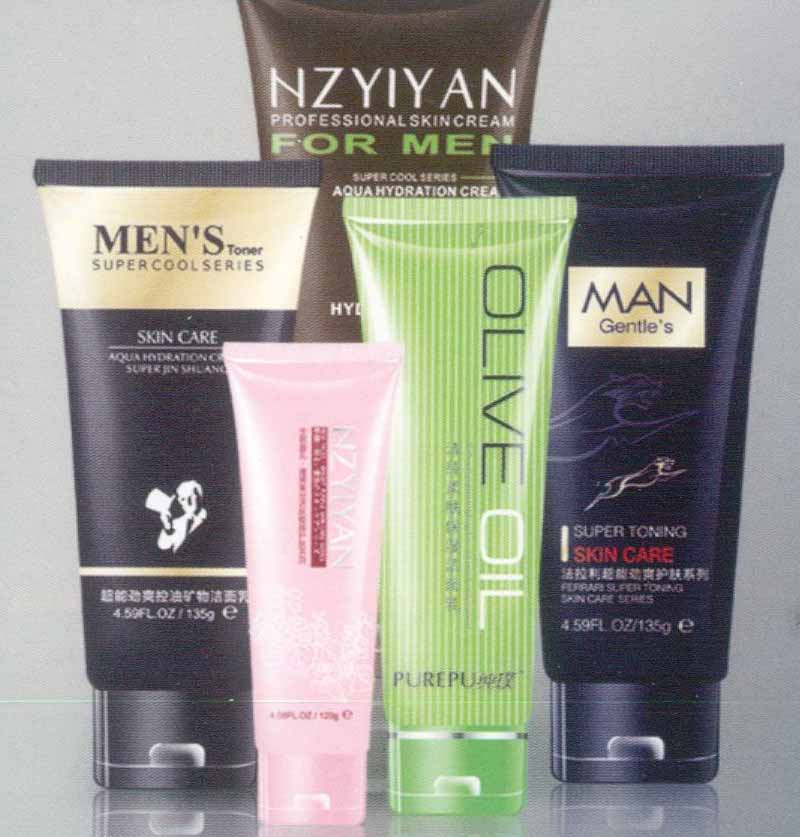

Plastic tube, laminated tube, ALU tube and plumbum tube

Power Supply

380V/220V

Working Pressure

0.55-0.65Mpa

Suited Motor

1.1Kw

1.5Kw

Heat Seal Power

3.0Kw

Overall Dimension

2000*950*1900

2200*1220*2400

Machine Weight

850Kg

1300Kg
