Home » Products » Fine crusher » WCSJ Series Universal Coarse Crusher
This machine is applied as supporting equipment, before fine crushing process in trades such as pharmaceutical, chemical and foodstuff ect., which has better crushing effect for any material without limitation on its viscosity, hardness, softness and fiber ect.
Main Application
This machine is applied as supporting equipment, before fine crushing process in trades such as pharmaceutical, chemical and foodstuff ect., which has better crushing effect for any material
without limitation on its viscosity, hardness, softness and fiber ect.
Working principle

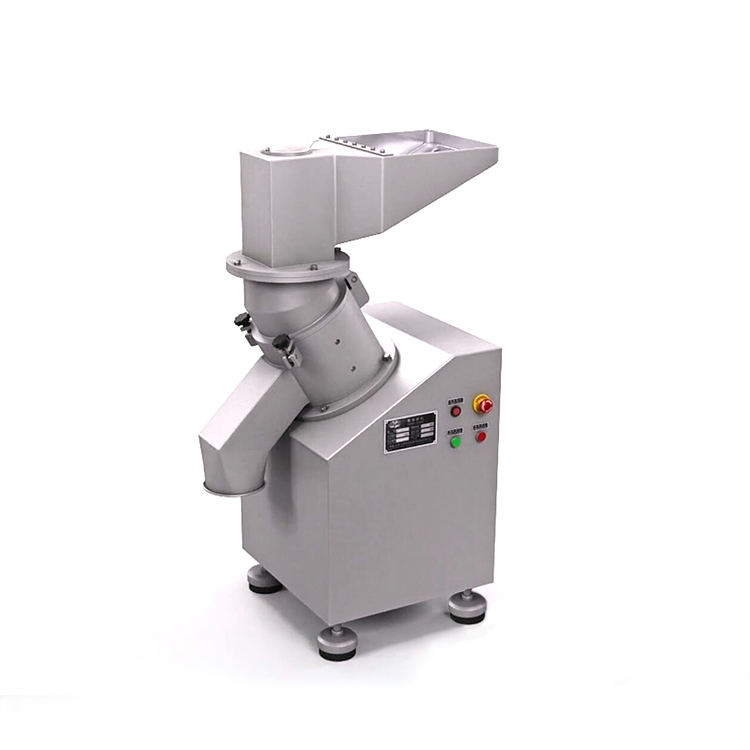

This machine is made of stainless steel according to GMP standard, and the material is fed into the crushing chamber through a hopper, crushed by simultaneous cutting and impact of both
fixed and movable knives, and flowed to the exit automatically under the effect of rotating centrifugal force. With the characteristics including high output, low noise and convenient cleaning,
this machine has reached international advanced level.
Model
Prdouction Capacity
Feeding Size
Output Size
Spindle Speed
Motor Power
overall dimension
overall dimension
weight
WCSJ-20 IV,V
100-500kg/h
≤100mm
0.5-20mm
960r/min
5.5KW
<70decibel
560*850*1280mm
300kg
WCSJ-320 IV,V
300-1200kg/h
≤100mm
0.5-20mm
1070r/min
11KW
<70decibel
1100*800*1380mm
600kg
