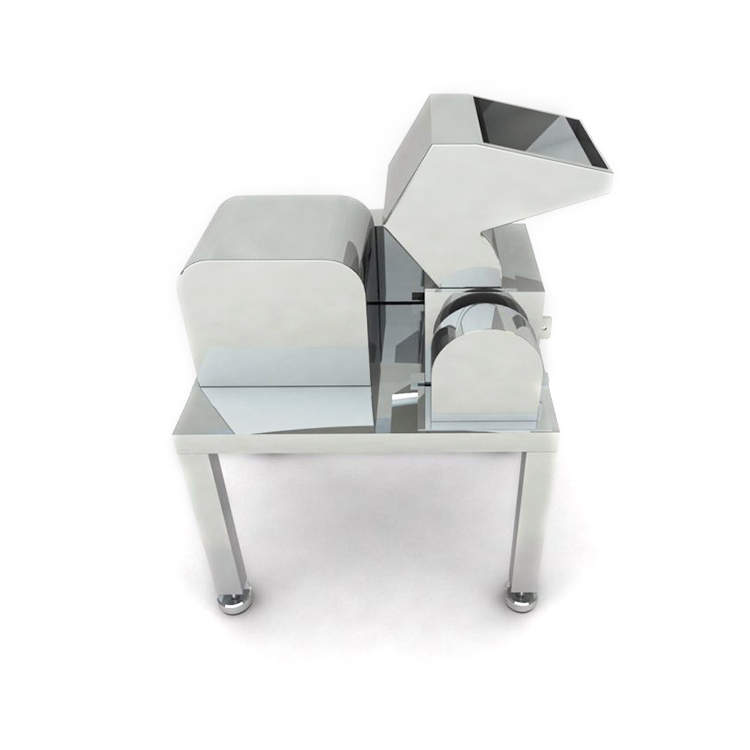

Home » Products » Fine crusher » CSJ Series Coarse Crusher
This machine is applied as supporting equipment, before fine crushing process in trades such as pharmaceutical, chemical and foodstuff ect., which has better crushing effect for any material without limitation on its viscosity, hardness, softness and fiber ect.
Main Application:
This machine is applied as supporting equipment, before fine crushing process in trades such as pharmaceutical, chemical and foodstuff ect., which has better crushing effect for any material
without limitation on its viscosity, hardness, softness and fiber ect.
Working principle:
This machine is horizontal crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by cutting and impact of both fixed and rotating knives, and flows
of the exit automatically under the effect of rotating centrifugal force. Designed according to GMP standard and wholly made of stainless steel, this machine has simple structure, convenient
cleaning and low noise, being the ideal equipment for coarse crushing.
| Model | Prdouction Capacity | Feeding Size | Output Size | Spindle Speed | Motor Power | Overall Dimension | Weight |
|---|---|---|---|---|---|---|---|
| CSJ-200 IV,V | 80-300kg/h | ≤100mm | 0.5-20mm | 480r/min | 3KW | 900*600*1440mm | 200kg |
| CSJ-300 IV,V | 100-800kg/h | ≤100mm | 0.5-20mm | 480r/min | 4KW | 900*700*1440mm | 300kg |
| CSJ-400 IV,V | 200-1000kg/h | ≤100mm | 0.5-20mm | 480r/min | 5.5KW | 900*800*1440mm | 380kg |
| CSJ-600 IV,V | 500-1500kg/h | ≤100mm | 0.5-20mm | 480r/min | 11KW | 1000*900*1440mm |
500kg |
